Specifications
1.max.temperature 1700 ℃.
2.Professional Manufacturer.
3.Auto-programmable control.
4.Good after-sales service and Warranty
|
Chamber size |
120x120x130mm (Width x Height x Depth) |
|
Max. temperature |
1700 ℃ |
|
Working temperature |
1600 ℃ |
|
Temperature control |
PID automatic control via current limiting phase angle fired thyristor with 30 steps programmable |
|
Heating rate |
0-15 ℃/min |
|
Thermocouple |
B type |
|
Temperature accuracy |
+/- 1 ℃ |
|
Heating element |
MoSi2 Heating element |
|
Furnace structure |
Double layer steel casing with dual cooling fan |
|
Furnace liner |
1800C grade fiber alumina refractory liner |
|
Working voltage |
220V 50HZ |
|
Max. Power |
2.5KW |
|
Quantity |
1set |
|
Gross weight |
100kgs |
|
Payment terms |
T/T in advance |
|
Delivery time |
20 days |

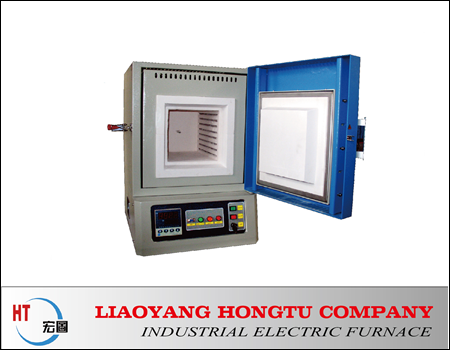

TZ-1700M electronic experimental muffle furnace is the most cost effective bench-top high temperature muffle furnace made by Liaoyang Hongtu Carbide Co.,LTD.
